Bases

At the moment, only orthogonal bases are supported.

Every basis is orthogonal and represented by a WTOrthogonalBasis, which contains scaling and wavelet filters as static vectors.

The wavelets currently supported are given in the following table.

Kind	Symbols
Haar	`WT_HAAR`
Daubechies, `n` vanishing moments	`WT_D1` ... `WT_D20`
Coiflets	`WT_COIF2` ... `WT_COIF10`
Symlets	`WT_SYM2` ... `WT_SYM10`
Battle-Lemarie	`WT_BATTLE2`, `WT_BATTLE4`, `WT_BATTLE6`
Beyl	`WT_BEYL`
Vaidyanathan	`WT_VAID`
Morris minimum-bandwidth	`WT_MB42`, `WT_MB82`, `WT_MB83`, `WT_MB84`, `WT_MB103`, `WT_MB123`, `WT_MB143`, `WT_MB163`, `WT_MB183`, `WT_MB243`, `WT_MB323`
Fejer-Korovkin	`WT_FK4`, `WT_FK6`, `WT_FK8`, `WT_FK14`, `WT_FK18`, `WT_FK22`
Best-localised Daubechies	`WT_BL7`, `WT_BL9`, `WT_BL10`
Han	`WT_HAN23`, `WT_HAN33`, `WT_HAN45`, `WT_HAN55`

The functions behind the filters

By the cascade algorithm, filters generate scaling and wavelet functions. For a given basis, cascade generates these functions, e.g.

φ, ψ = cascade(WT_D4, 8)

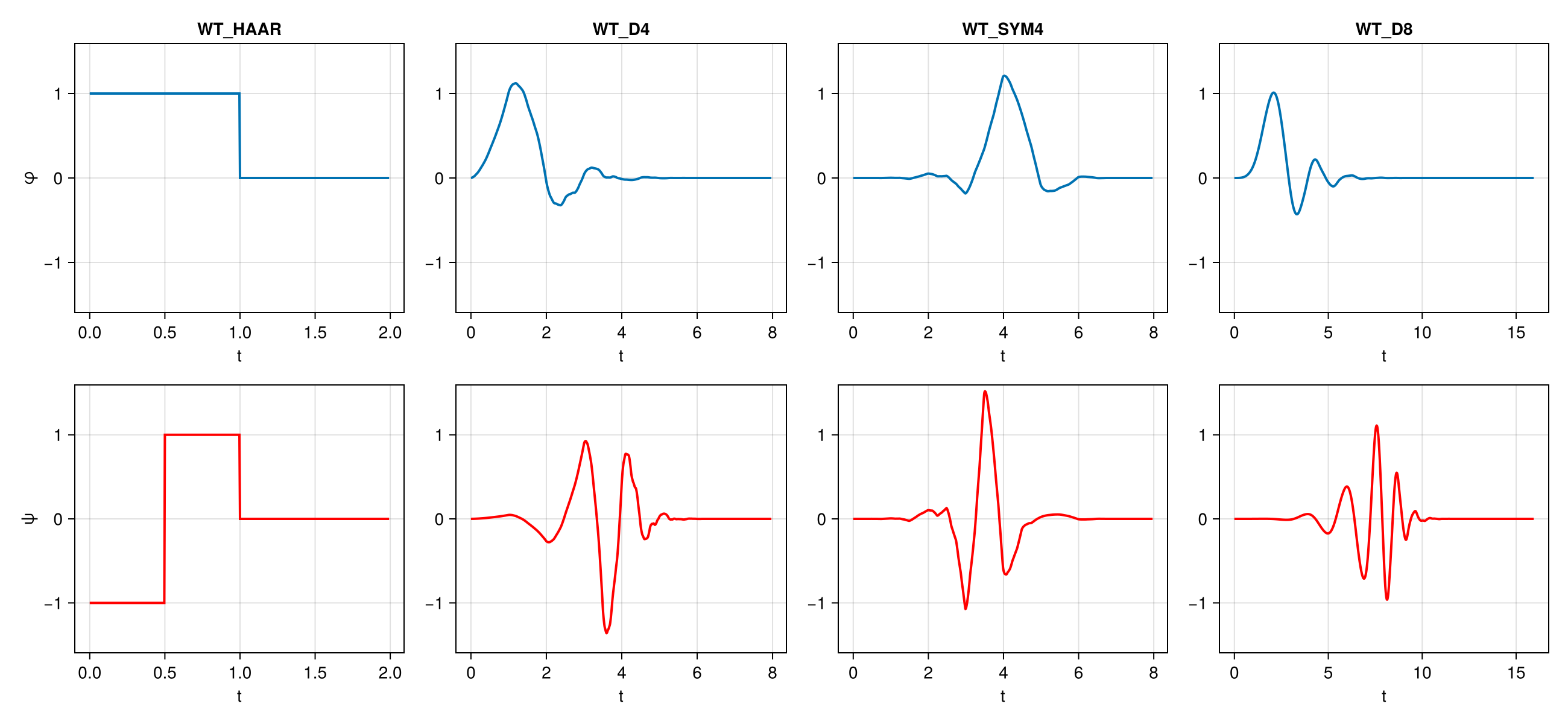

The scaling function φ and the wavelet function ψ of four bases.

Filters with more vanishing moments yield smoother functions, as higher derivatives of their scaling and wavelet functions are bounded. However, this also yields wider support and phase sensitivity.

Choosing a basis

Different signals are best approximated in different bases, depending on their characteristics. The next figure shows coefficient magnitudes for a transformed signal under a few different bases; note their different decay properties. An approximation to the signal, using the 5% of coefficients with largest magnitude, is also shown. The classic blockiness of the Haar transform is clearly seen; on the other hand, the Sym4 wavelet more accureately captures smooth HF energy as it has more vanishing moments.

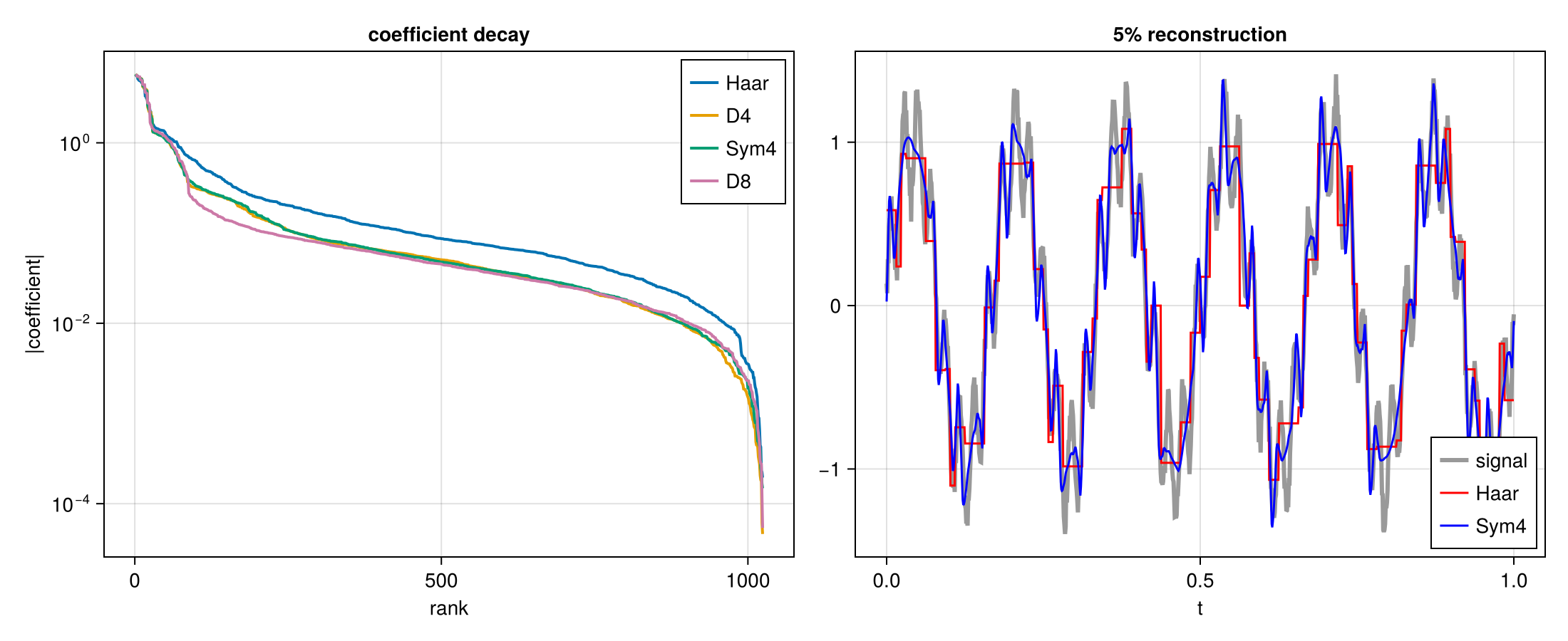

Coefficient decay and a 5% reconstruction for several bases.

The transform of the 2D signal from the "examples" section shows the Haar transform failing to sparsify smooth variation in the signal.

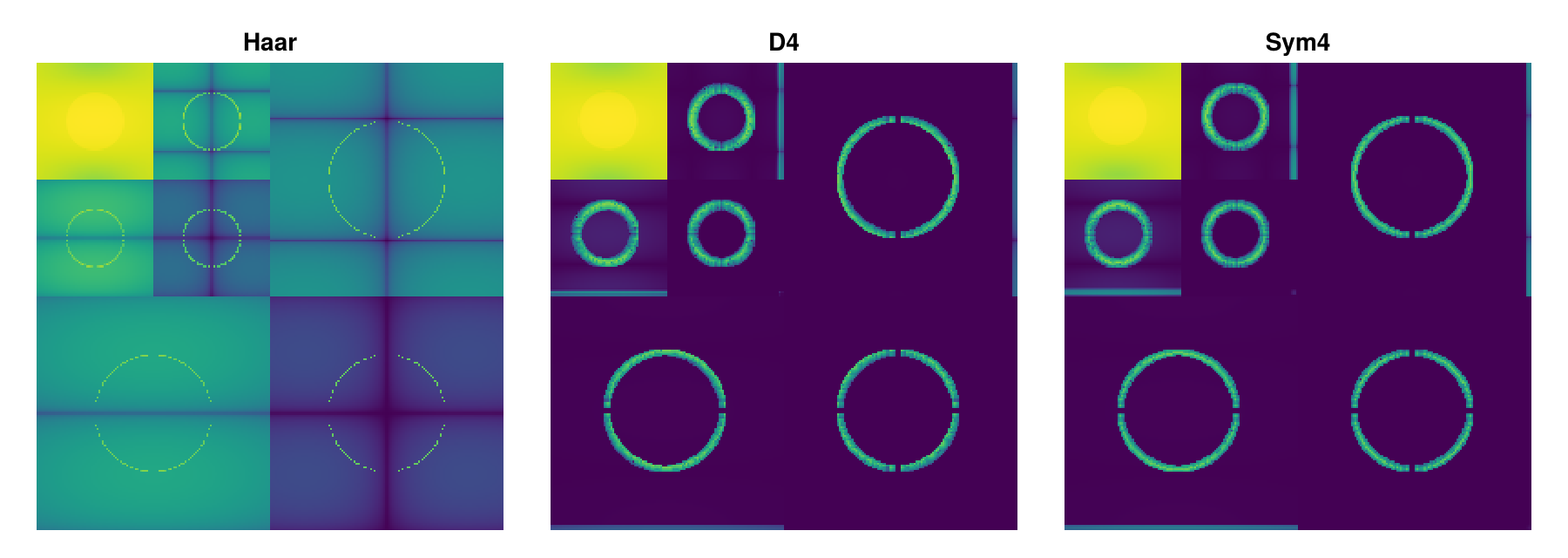

The two-level coefficients of one image for three bases.

For a number rather than a picture, sparsity summarises how well a basis concentrates a signal, and rtenergy gives the energy of each subband.

DIY Wavelet Bases

Wavelet bases and transforms can be specified by the user from PR-QMF taps. Either scaling or wavelet taps can be specified; the "flip-and-reverse" trick is used to calculate the corresponding orthogonal filter. These must be passed to the constructor as static arrays, like so:

using StaticArrays

my_haar = WTOrthogonalBasis(φ = SA[1.0, 1.0])
my_d4 = WTOrthogonalBasis(φ = SA[0.2303778, 0.7148466, 0.6308808, -0.0279838,
                              -0.1870348, 0.0308414, 0.0328830, -0.0105974])
